Core Liners & Boxes
Clear Core Liners
Core liners are compatible with most window sampling core barrels. They are manufactured from clear uPVC in lengths of 1000mm up to 3050mm, with a minimum wall thickness of 1mm.
- Tolerance of Length +/- 5.0mm
- Tolerance of O.D. (< 8.7mm) +/- 1.5mm
- Tolerance of O.D. (> 87mm) +/- 2.0mm
U100 tubes are manufactured from UPVC 450 mm long x 110mm diameter (WT 3.2mm)
| Specification | Core Reference | Length | P/N | Spec | P/N |
|---|---|---|---|---|---|
| 37mm Core Liner | 1mtr | GCL37 | 37mm Cap | GCL37C | |
| 47mm Core Liner | 1mtr | GCL47 | 47mm Cap | GCL47C | |
| 55mm Core Liner | 1mtr | GCL55 | 55mm Cap | ||
| 57mm Core Liner | 1mtr | GCL57 | 57mm Cap | GCL57C | |
| 65mm Core Liner | 1mtr | GCL65 | 65mm Cap | GCL65C | |
| 67mm Core Liner | 1mtr | GCL67 | 67mm Cap | GCL67C | |
| 75mm Core Liner | 1mtr | GCL75 | 75mm Cap | ||
| 77mm Core Liner | 1mtr | GCL77 | 77mm Cap | GCL77C | |
| 79mm Core Liner | T6-H | 3 mtr | GCL783 | ||
| 87mm Core Liner | 1mtr | GCL87 | 87mm Cap | GCL87C | |
| 94.5mm Core Liner | T6-116 | 1.6mtr | GCL9416 | ||
| 94.5mm Core Liner | T6-116 | 3mtr | GCL94/3M T6-116 | ||
| 101mm Core Liner | 1mtr | GCL101 | 101mm Cap | GCL101C | |
| 102mm Core Liner | 1mtr | GCL102 | 102mm Cap | GCL102C | |
| 113mm Core Liner | SWF | 1.6mtr | GCL113.6 | ||
| 113mm Core Liner | SWF | 3mtr | GCL113/SWF3 | ||
| U100 uPVC | 450mm | GU100 | U4 100 Caps | CC100 |
Other sizes available on request
Core Liner Box

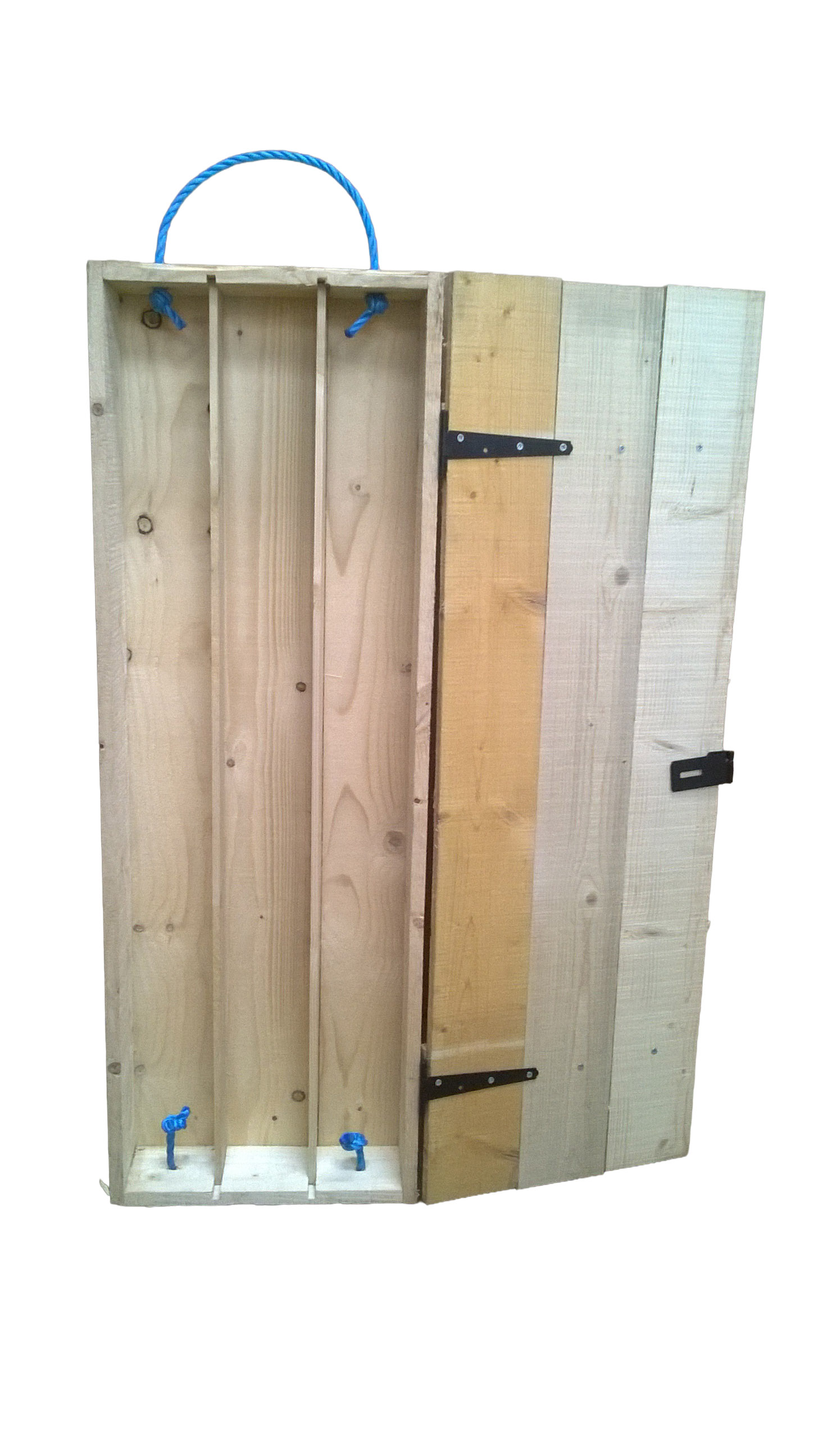

Core liner boxes store retrieved core samples, allowing safe transportation. They are available in wood or PVC
| Part No. | Description |
|---|---|
| GCB1 | 3 X 1M Core Liner Box 95mm |
| GCB1.5 | 2 X 1.5M Core Liner Box 95mm |
| GCB1P3 | 3 X 1M PVC Core Liner Box 129mm |
| GCP1PS | 5 X 1M PVC Core Liner Box 88mm |
